Revolutionary
Pre-cleaning Technology
Your job is dirty, but your filter doesn’t have to be.
How much is filter maintenance costing you?
We all know how important it is to keep our engines running smoothly. But did you know that the build-up of crop residue, straw, dust, dirt, and debris can have a major impact on your engine’s performance?
Our patent-pending design minimizes crop residue, straw, dust dirt, and debris from entering your engines intake system, ensuring the longest possible filter life. This results in optimal engine performance and a significant reduction in maintenance cost and downtime. Not to mention, you’ll save yourself a lot of time from having to clean your filter. So why wait? Give your engine the clean air it deserves with the KAS Pre-Cleaner. Your equipment will thank you!
The KAS Difference
- Low air restriction for outstanding fuel economy and performance
- Highest particulate removal efficiency to increase filter life
- Drastic reductions in downtime and operating costs
- Reduced carbon footprint
Redekop’s KAS offers value and performance.
Made with the highest quality components
Engineered for a perfect balance between low air restriction and the highest particulate removal efficiency.
And with as little as a 5 minute install time, equipment operators across North America are switching to the Redekop KAS in waves.
Because dirt, dust, debris and snow shouldn’t slow you down.
The lowest air
restriction.
Independent A4 Test Dust
Air Restriction,
50g/hr Feed Rate
5X Dust
Protection.
Independent A4 Test Dust
Hours to Pass 1000 grams,
50g/hr Feed Rate

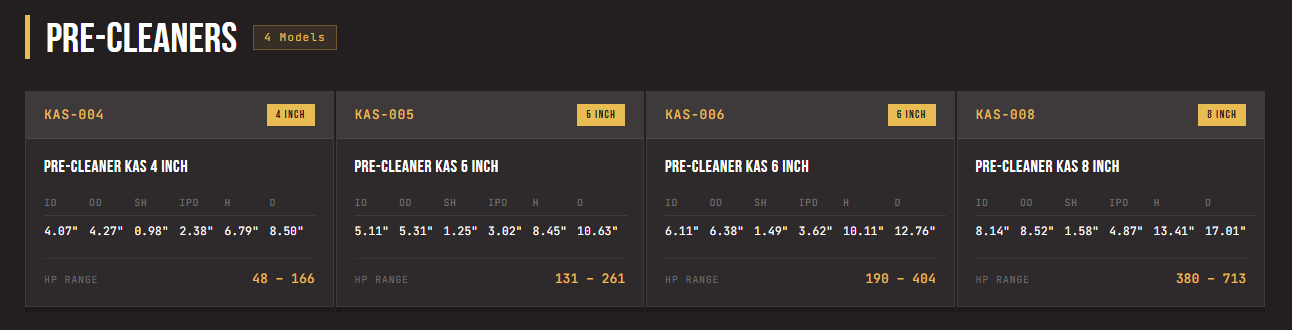

Redekop KAS Sizing Calculator
Get the right Redekop KAS Pre-Cleaner for your engine:
| Redekop KAS Precleaners | Inlet Size | Outside Diameter | Height | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|
| Model # | CFM Range | Inches | mm | Inches | mm | Inches | mm | LBS | kg |
| KAS–004 | 175 - 400 | 4.04 | 102 | 8.50 | 216 | 6.77 | 172 | 2.9 | 1.30 |
| KAS–005 | 275 - 600 | 5.04 | 128 | 10.63 | 270 | 8.46 | 215 | 5.1 | 2.33 |
| KAS–006 | 400 - 850 | 6.06 | 154 | 12.80 | 325 | 10.12 | 257 | 8.1 | 3.66 |
| KAS–007 | 600 - 1,300 | 7.06 | 180 | 14.93 | 379 | 11.80 | 300 | 11.5 | 5.22 |
| KAS–008 | 850 - 1,700 | 8.06 | 205 | 17.42 | 442 | 13.77 | 350 | 15.5 | 7.03 |
“
“It was a relief to run the grader all day and not have to take the guys a replacement filter. The KAS pre-cleaners have been a game changer for sure.”
– Andy Shooter
Foreman, RM of Francis No.127
“
“We work in dust and dirt all day. Costs are now controllable, we’re saving alot on fuel and maintenance. It’s so simple and I would recommend this to any diesel operator company.”
– Neil Bruce
Maintenance Manager, Curtis Construction LTD
“
“In some of the harshest winter conditions we’ve seen, the KAS proved itself allowing us to achieve a 250-hour service interval – and upon inspecting the filter it was dry and able to head back out to work.”
– Willy
RM of Leroy No.339
(150AWD plow Graders)
